Product List
.png)

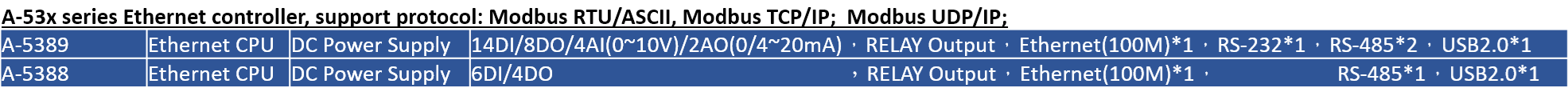

Model
|
A-5389 NEW ITEM |
A-5388 NEW ITEM |
A-5390 Coming Soon |
Specifications
| A-5389 | A-5388 |
|
Operation Voltage: 10~30VDC / 24VAC
Digital Inputs: 14*DI(Isolation), status low:<3.9VDC, status high:>4VDC
Digital Outputs: 8*Isolation(Relay)
Continuous Current: Relay: 5A(with resistive load), 2A(with inductive load)
Analog Inputs: 4*AI(0~10VDC)
Analog Outputs: 2*AO(0/4~20mA
Input Operating Frequency: 250KHZ(Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 & RS-485*2 & RS-232*1 & Ethernet(100M)
Degree Of Protection: IP20
Memory card: Micro SD
Base Controller Ios: 28 AIOs
Installation: 35 mm DIN rail or Flush mounting
|
Operation Voltage: 10~30VDC / 24VAC
Digital Inputs: 6*DI(Isolation), status low:<3.9VDC, status high:>4VDC
Digital Outputs: 4*Isolation(Relay)
Continuous Current: Relay: 5A(with resistive load), 2A(with inductive load)
Input Operating Frequency: 250KHZ(Total 1000KHZ)
RTC/ Hold During Power Off: Yes
Operation Temperature: -20 to +75 °C
Communication Ports: USB*1 & RS-485*2 & RS-232*1 & Ethernet(100M)
Degree Of Protection: IP20
Installation: 35 mm DIN rail or Flush mounting
|
