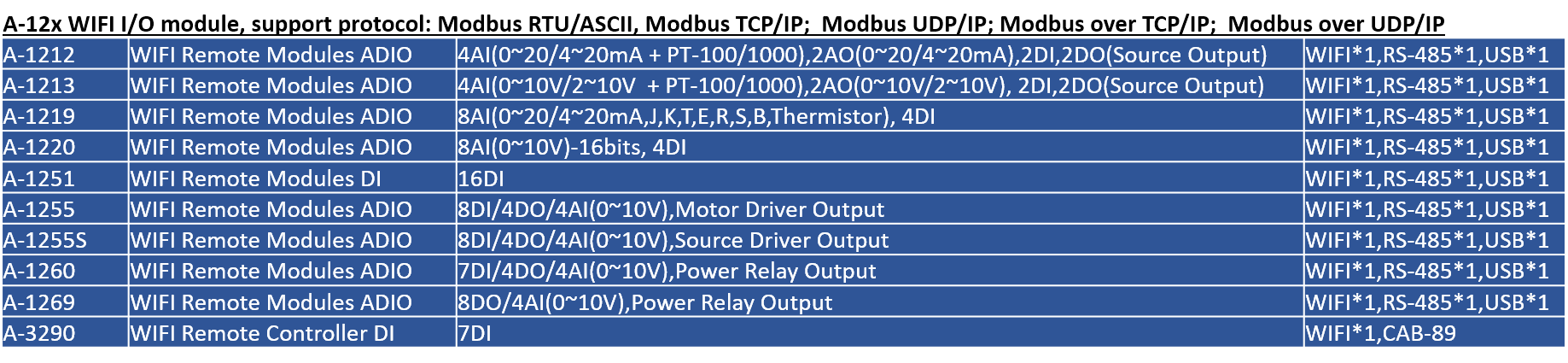

Product List
.png)
Model
|
A-1212 |
A-1213/A-1220 |
A-1219 |
.png)
|
A-1251 |
A-3290 |
A-1255 |
|
A-1255 S |
A-1260 |
A-1269 |
Specifications
| A-1212 | A-1213 |
|
Operation Voltage: 10~30VDC/24VAC
|
Operation Voltage: 10~30VDC / 24VAC
Inputs: 2*Isolation DI
status low : <1VDC status high : >5~30VDC Outputs: 2*(Transistor)
Continuous Current: 10~35VDC(1A)
Communication Baud Rate: 2400~921600bps
Isolation: YES(5000VDC)
Input Operating Frequency: 10HZ
Output Operating Frequency: Transistor: 10HZ
Operation Temperature: -20 to +75 °C
Degree Of Protection: IP20
Installation: 35 mm DIN rail or Flush mounting
Dimension (W x H x D mm): 76.4*118.2*38.5 mm Analog Inputs: 4(16-bit)
Analog Input Type: 2*0/2~10V，2*PT-100/1000，
( -200 ~ +600 °C )
Analog Outputs: 2(12-bit)
Analog Output Type: 0/2~10V
Input Impedance: Current: 100 Ω / RTD : 10MΩ
AnalogInput / Output Accuracy: ±0.1% / ±1%
Interface: WIFI + RS-485 + USB
Channel Independent Configuration: YES
Sampling Rate: 10 sample/second (total)
CMR@50/60 Hz: 120 dB
|
| A-1219 | A-1220 |
|
Operation Voltage: 10~30VDC/24VAC
Inputs(Isolation): 4 Communication Baud Rate: 2400~921600bps Isolation: YES(5000VDC) Input Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Analog inputs: 8 (16-bit) Analog input Type:0/4~20mA,J,K,T,E,R,S,BThermocouple,Thermistor Input Impedance:Current: 100 Ω / Voltage : 10 MΩ Input Accuracy: ±0.1% Interface: WIFI + RS-485 + USB Channel Independent Configuration: YES Sampling Rate: 10 sample/second (total) CMR @ 50/60 Hz: 120 dB Span Drift: ±50 ppm/°C Zero Drift: ±18 μV/°C Temperature Ranges: (J:-210~760°C) (K:-270~1,370°C) (T:-270~400°C)
(E:-270~1,000°C) (R:0~1,750°C) (S:0~1,750°C) (B:0~1,800°C)
(Thermistor-10K-T2:0~100°C) (Thermistor-10K-T3:0~100°C)
(Thermistor-6.8K:-10~100°C) (Thermistor-4.7K:-10~100°C)
(Thermistor-3.3K:-20~100°C) (Thermistor-3K:-20~100°C)
(Thermistor-2.7K:-20~100°C) (Thermistor-2.252K:-20~100°C)
(Thermistor-2.1K:-30~100°C) (Thermistor-2K:-30~100°C)
(Thermistor-1.5K:-40~100°C) (Thermistor-1K:-40~100°C)
|
Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 4*isolation DI; status low<1VDC; high>5~30VDC Communication Baud Rate: 2400~921600bps Isolation: YES(5000VDC) Input/Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Installation: 35 mm DIN rail or Flush mounting Dimension (W x H x D mm): 76.4*118.2*38.5 mm Analog inputs: 8 (16-bit) Analog input Type: 0/2~10V IInput Accuracy: ±1% Interface: RS-485 + USB + WIFI Channel Independent Configuration: YES Sampling Rate: 10 sample/second (total) |
| A-1251 | A-3290 |
| Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 16 Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Input Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface:WIFI + RS-485 + USB Channel Independent Configuration: YES |
Operation Voltage: AA Battery *2
Function keys: 7 Protocal:MODBUS TCP/IP Operation Temperature: -20 to +75 °C Degree Of Protection: IP66 Communication: Standard 2.4GHz IEEE 802.11 b/g (Wi-Fi) Dimension (W x H x D mm): 120*55*25 mm |
| A-1255 | A-1255S |
| Operation Voltage: 10~30VDC/24VAC Inputs(Isolation):8 Outputs: 4*(Motor Driver) Continuous Current: 8-60VDC(1.75A) Communication Baud Rate: 2400~921600bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Analog inputs: 4 (12-bit) Analog input Type: 0~10V Input Impedance: Voltage:10 MΩ Input Accuracy: ±1% Interface:WIFI + RS-485 + USB Channel Independent Configuration: YES Sampling Rate: 10 sample/second (total) CMR @ 50/60 Hz: 120 dB Span Drift: ±50 ppm/°C Zero Drift: ±18 μV/°C |
Operation Voltage: 10~30VDC/24VAC Inputs(Isolation):8 Outputs: 4*( (Source) Continuous Current: 10-40VDC(1A) Communication Baud Rate: 2400~921600bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Analog inputs: 4 (12-bit) Analog input Type: 0~10V Input Impedance: Voltage:10 MΩ Input Accuracy: ±1% Interface:WIFI + RS-485 + USB Channel Independent Configuration: YES Sampling Rate: 10 sample/second (total) CMR @ 50/60 Hz: 120 dB Span Drift: ±50 ppm/°C Zero Drift: ±18 μV/°C |
| A-1260 | A-1269 |
|
Operation Voltage: 10~30VDC/24VAC |
Operation Voltage: 10~30VDC/24VAC
|
