※ 可應用於Yottacontrol全系列控制器 ※ RS-485通訊介面 ※ 支援 Modbus RTU ※ LED輸出入狀態指示燈 ※ 操作溫度:-20~+75°C ※ 5000VDC隔離電壓保護 ※ 雙看門狗定時器 ※ 抗雷擊保護 ※ 抗靜電保護 ※ 低功耗設計 ※ 操作範圍可達1200公尺 ※ 多款電壓、電流、傳感器輸入形式可選擇 ※ 多款PNP、NPN、繼電器輸出形式可選擇 ※ 免費設定監控軟體 Smart YottaUtility |

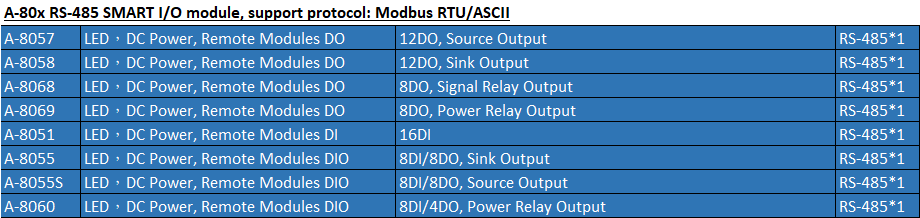

Product List
Specifications
| A-8051 | |
| Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 16 Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Input Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
|
| A-8055 | A-8055S |
| Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 8 Outputs: 8*(Sink Transistor) Continuous Current: 10-40VDC(200mA) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Input/Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 8 Outputs: 8*(Souce Transistor) Continuous Current: 10-35VDC(1A) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Input/Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
| A-8057 | A-8058 |
| Operation Voltage: 10~30VDC/24VAC Outputs: 12*(Souce Transistor) Continuous Current: 10-35VDC(1A) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
Operation Voltage: 10~30VDC/24VAC Outputs: 12*(Sink Transistor) Continuous Current: 10-40VDC(200mA) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
| A-8060 | |
| Operation Voltage: 10~30VDC/24VAC Inputs(Isolation): 8 Outputs: 4*(Power Relay) Continuous Current: 250VAC(5A)/30VDC(5A) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Input/Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
|
| A-8068 | A-8069 |
| Operation Voltage: 10~30VDC/24VAC Outputs: 8*(Signal Relay) Continuous Current: 120VAC(0.5A)/30VDC(1A) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
Operation Voltage: 10~30VDC/24VAC Outputs: 8*(Power Relay) Continuous Current: 250VAC(5A)/30VDC(1A) Communication Baud Rate: 1200~115200bps Isolation: YES(5000VDC) Output Operating Frequency: 10HZ Operation Temperature: -20 to +75 °C Degree Of Protection: IP20 Interface: RS-485 Channel Independent Configuration: YES |
